Phased Array System Development

10.5 GHz Phased Array System for FR3 Hybrid Beamforming Testbed

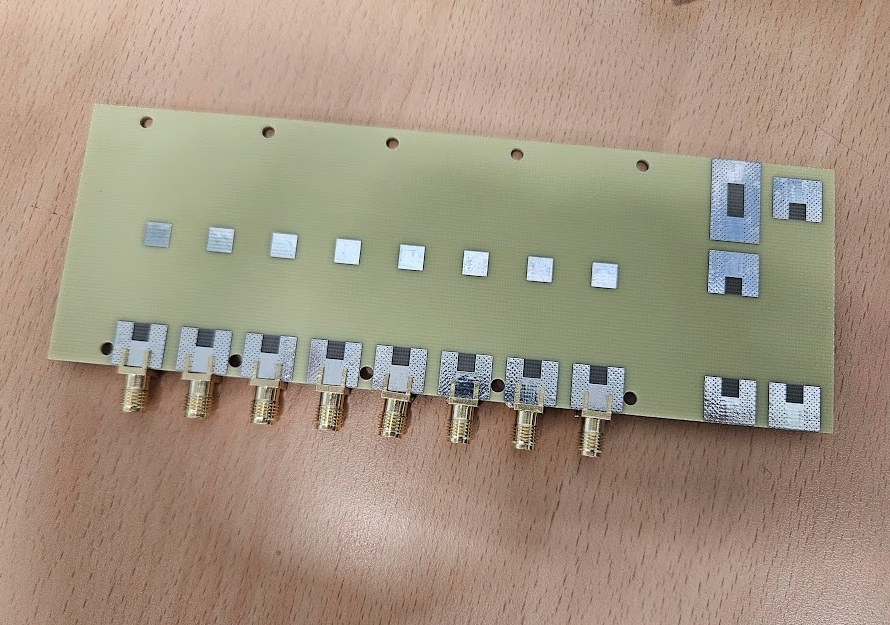

Our custom-built 8-array phased array system, based on Jon Kraft's work. The 3D-printed chassis was designed in collaboration with Gyutae Kim.

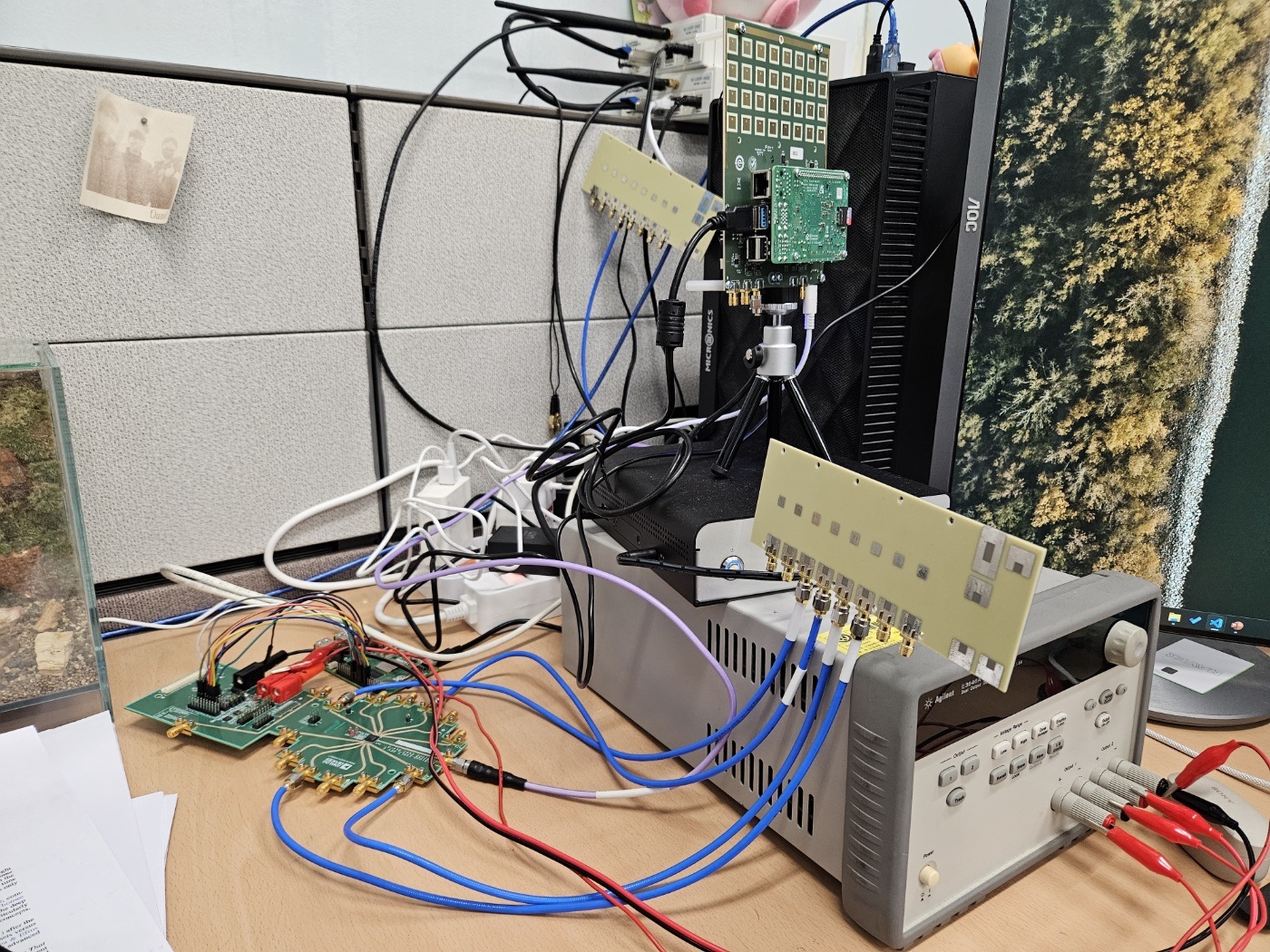

Phased array system setup comprising our custom-built phased array for Tx and the CN0566 Phaser for Rx. Bottom left: ADAR1000-EVALZ board and Raspberry Pi for SPI control. Top right: CN0566 Phaser board.

Based on Jon Kraft’s work and the Analog Devices ADAR1000-EVALZ board, we developed a 10.5 GHz phased array system as part of an FR3 hybrid beamforming testbed.

The array uses Jon Kraft’s open-source 10.5 GHz patch antenna design, with the ADAR1000 controlled via SPI using a Raspberry Pi. Basic beamforming was implemented by computing the required gain and phase settings and directly programming the corresponding ADAR1000 registers. Over-the-air experiments were conducted using NI USRP software-defined radios.

Beam-wise received power across a DFT codebook before and after array calibration.

We also implemented gain- and phase-offset calibration for the phased array, together with phase-coherent operation of two USRP N210s equipped with SBX daughterboards.

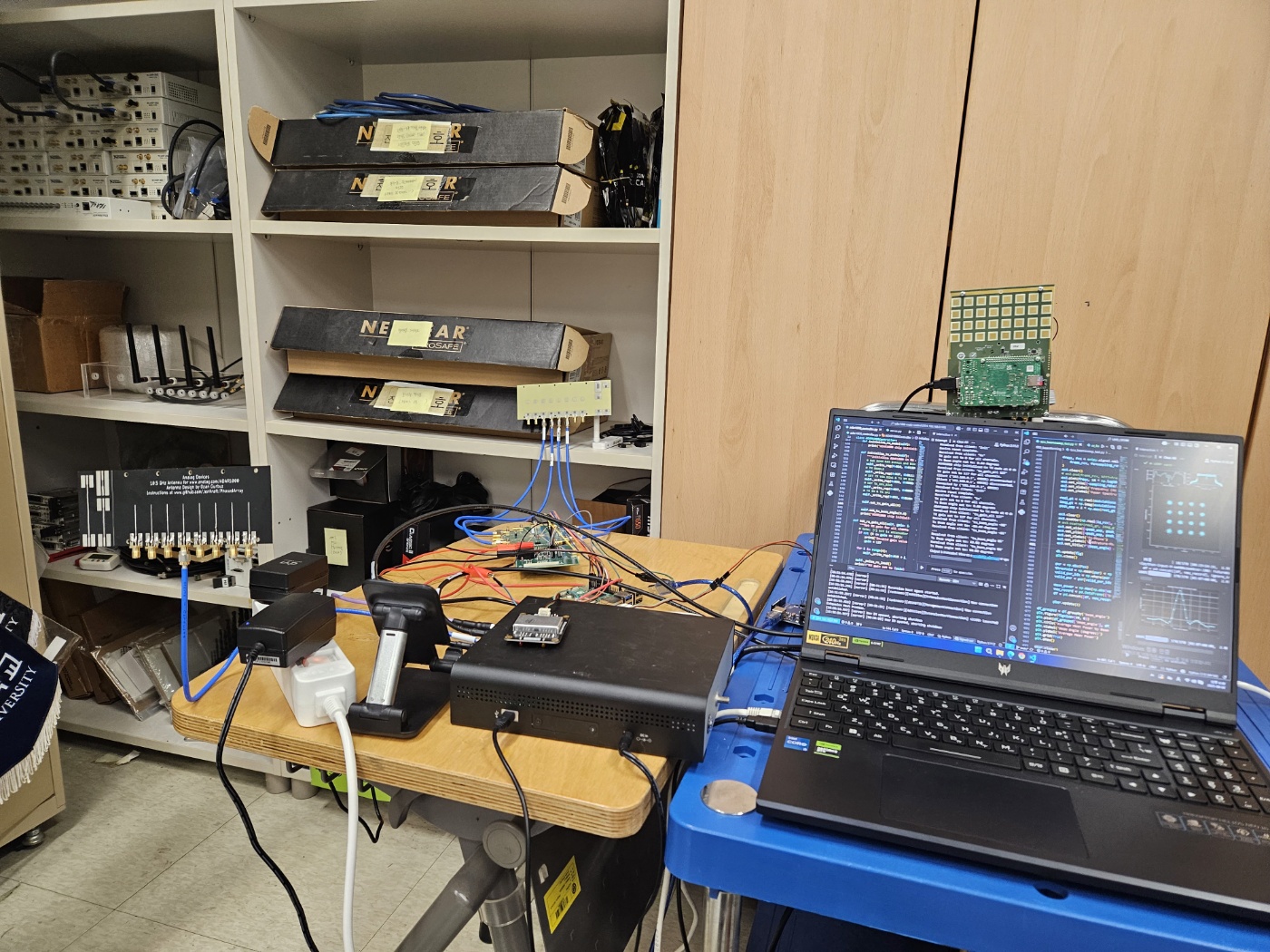

Tx beam-sweeping setup and measured receive power. The expected sinc-like beam pattern centered around 0° is clearly visible.

For end-to-end Tx/Rx OFDM experiments, we further integrated the system with the ADI CN0566 Phaser, enabling phased-array operation on both the transmit and receive sides. This setup serves as a hardware testbed for evaluating beam-sweeping and beam-alignment algorithms, as well as beamforming-based integrated sensing and communication (ISAC) systems.
